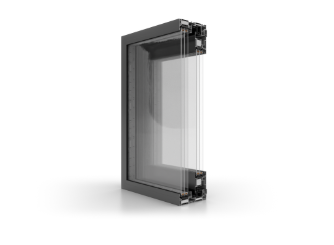

Key specifications
Material: Aluminum
Opening styles: Lift & slide
Frame depth: approx. 7 5/16 in (186 mm)
Sash depth: approx. 3 1/4 in (82 mm)
Active glazing capacity: approx. 0.71–2.60 in (18–66 mm)
Fixed glazing capacity: approx. 1.42–2.56 in (36–65 mm)
Configurations: A / C / G monorail where supported
Threshold: Low-threshold configuration available
Maximum sash weight: approx. 881 lb (400 kg)
Maximum sash height: approx. 126 in (3200 mm)
Application & opening style
Lift & slide
Colors & Finishes
Aluminum finish direction for Aluprof systems.
- Full RAL K7 powder-coat palette
- Custom powder colors available on request
Performance & certification
European Uw from 0.60 W/m²K
Uw values are European thermal-performance values and are not NFRC U-Factor ratings.
Performance status: Manufacturer specification
Glazing compatibility
Compatibility with specific double, triple or quadruple pane units is confirmed during project quoting.
Related systems
Lift & slide doors · All window systems · Window glazing · Lift & slide pricing
European Uw values are manufacturer thermal-performance values and are not NFRC U-Factor ratings. Maximum sash weight reflects fabricator-published capability (approx. 881 lb / 400 kg).
Performance values, dimensions and available documentation vary by size, glazing, opening type and configuration. Certified ratings shown above apply only to the specific listed configuration. Final system availability and project-specific documentation are confirmed during quotation.
